What Is a Group Head on an Espresso Machine?
TL;DR: The group head is the metal component on the front of an espresso machine where you lock in the portafilter and water flows through the coffee puck. It controls water temperature, pressure, and flow rate — making it the single most important factor in shot quality. Higher-end machines use thermosyphon or E61 group heads for thermal stability.
What the Group Head Actually Does
The group head is a brew chamber that connects your boiler to your portafilter. Hot water enters from the top, passes through a shower screen that distributes it evenly across the coffee puck, and exits as espresso. It also holds the portafilter locked at brew temperature between shots.

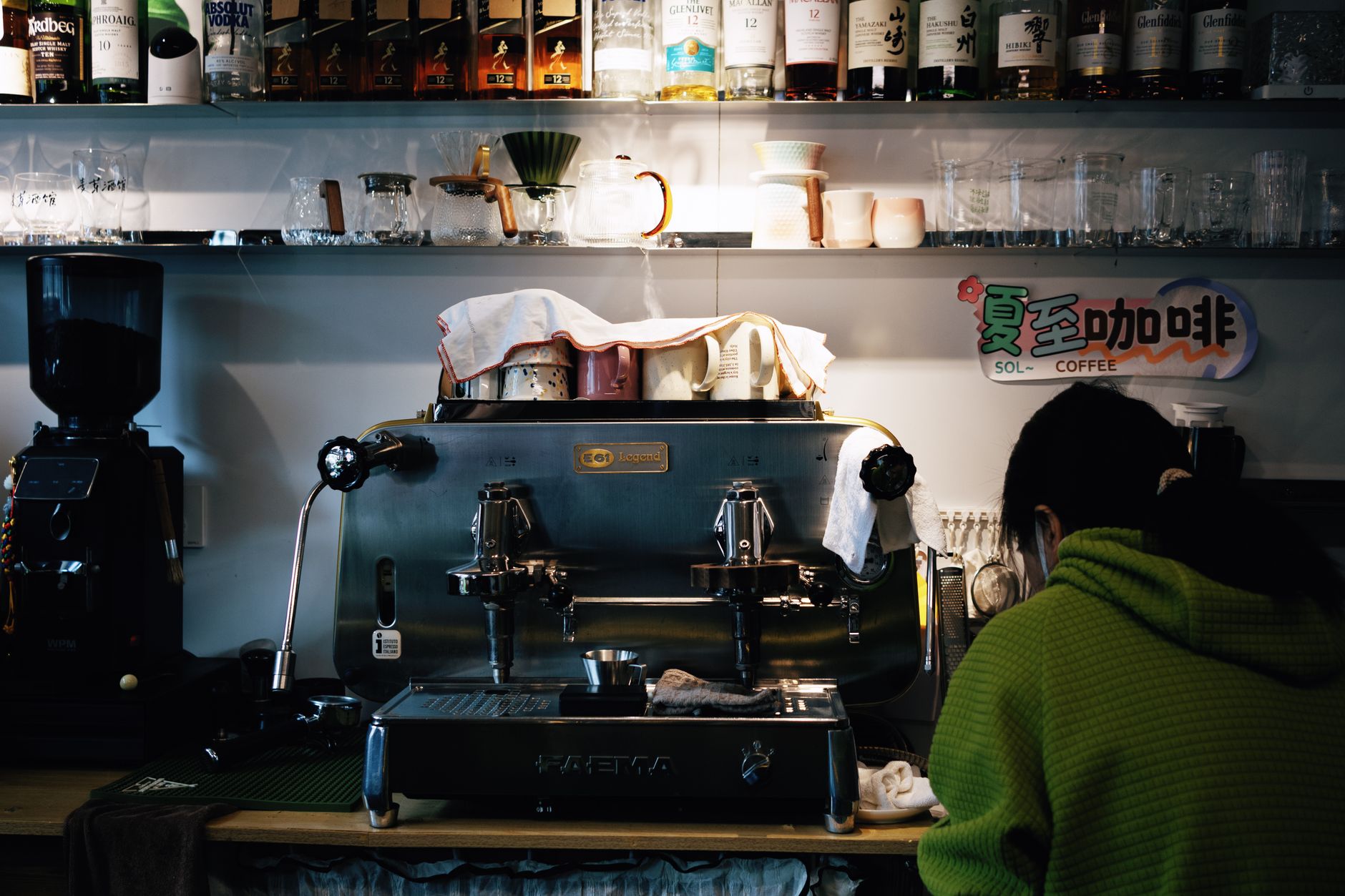

Photo: Pavel Danilyuk via Pexels
The group head has three core jobs: maintain temperature, distribute water evenly, and create a watertight seal with the portafilter. Fail any one of these and your shot suffers — channeling, temperature spikes, or pressure loss.
The shower screen (a perforated metal disc inside the group) is what most home baristas interact with during cleaning. It’s the part that gets caked with coffee oils and needs regular backflushing or scrubbing.
Types of Group Heads
There are four main group head designs used in modern espresso machines: saturated, semi-saturated, E61, and thermosyphon. Each handles temperature stability differently, and the choice affects shot consistency more than almost any other spec.

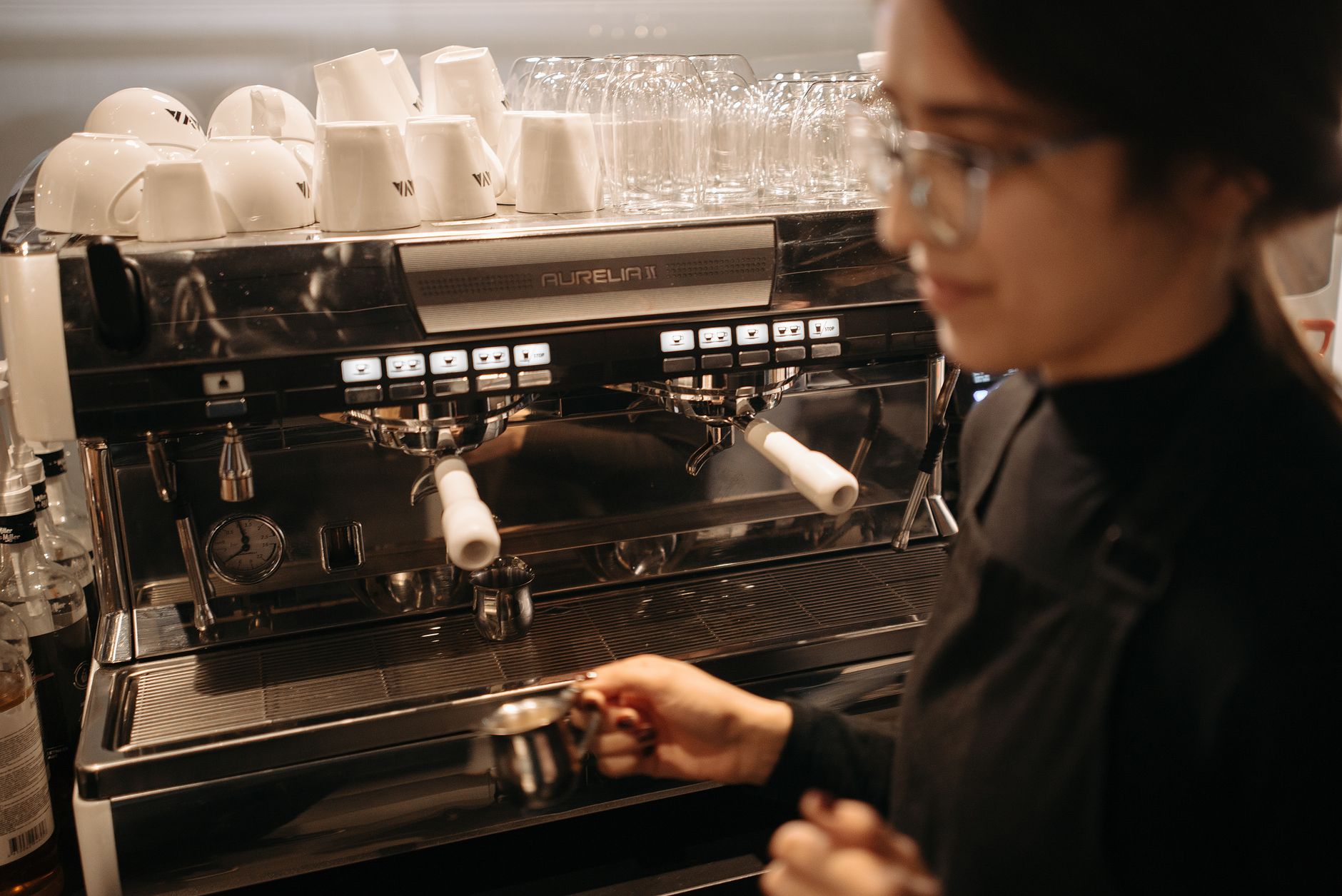

Photo: 小和尚 温柔的 via Pexels
E61 Group Head
The E61 (named after the 1961 Faema E61 machine) is the most common design in prosumer machines. A thermosyphon loop circulates hot water from the heat exchanger through the group head continuously, keeping the metal mass at brew temperature. The large brass body acts as a thermal buffer.
Machines like the Rocket Appartamento , ECM Classika , and Profitec Pro 300 all use E61 groups. They’re repairable, well-understood, and parts are universally available.
Saturated Group Head
Found on dual-boiler machines like the Breville Dual Boiler and La Marzocco Linea Mini . The group head is plumbed directly into the brew boiler, so it stays saturated with brew-temperature water at all times. Most thermally stable option — virtually zero temperature drift between shots.
Semi-Saturated Group Head
A middle ground: partially plumbed into the boiler but not fully saturated. Less common in home machines.
Thermocoil / Thermoblock Groups
Found in entry-level and pod machines. Water heats on demand as it passes through a coil or block rather than being held at temperature. Fast to heat up, but thermal mass is low — inconsistent shot to shot if you’re pulling back to back.
Group Head Materials and Why They Matter
Brass and stainless steel are the two materials used in group heads. Brass retains heat better and recovers faster between shots; stainless is more corrosion-resistant but thermally inferior. Almost every serious prosumer machine uses brass.
Photo: https://kaboompics.com/ via Pexels
The group gasket — a rubber ring that seals the portafilter — wears out every 12–18 months with daily use. When it starts weeping water around the portafilter handle or the handle feels loose, replace it. This is a $5–10 part and a 10-minute job on most machines.
How Group Head Design Affects Your Shot
| Group Type | Thermal Stability | Recovery Time | Typical Machines |
|---|---|---|---|
| Saturated (dual boiler) | Excellent | Instant | Breville Dual Boiler, Linea Mini |
| E61 thermosyphon | Very Good | 20–30 min warm-up | Rocket, ECM, Profitec |
| Thermocoil/block | Fair | 30–60 seconds | Breville Bambino, Nespresso |
| Semi-saturated | Good | 15–20 min warm-up | Some mid-range HX machines |
For home use pulling 1–3 shots: E61 is more than enough. Pulling 10+ back to back: saturated dual boiler wins on consistency.
Maintaining Your Group Head

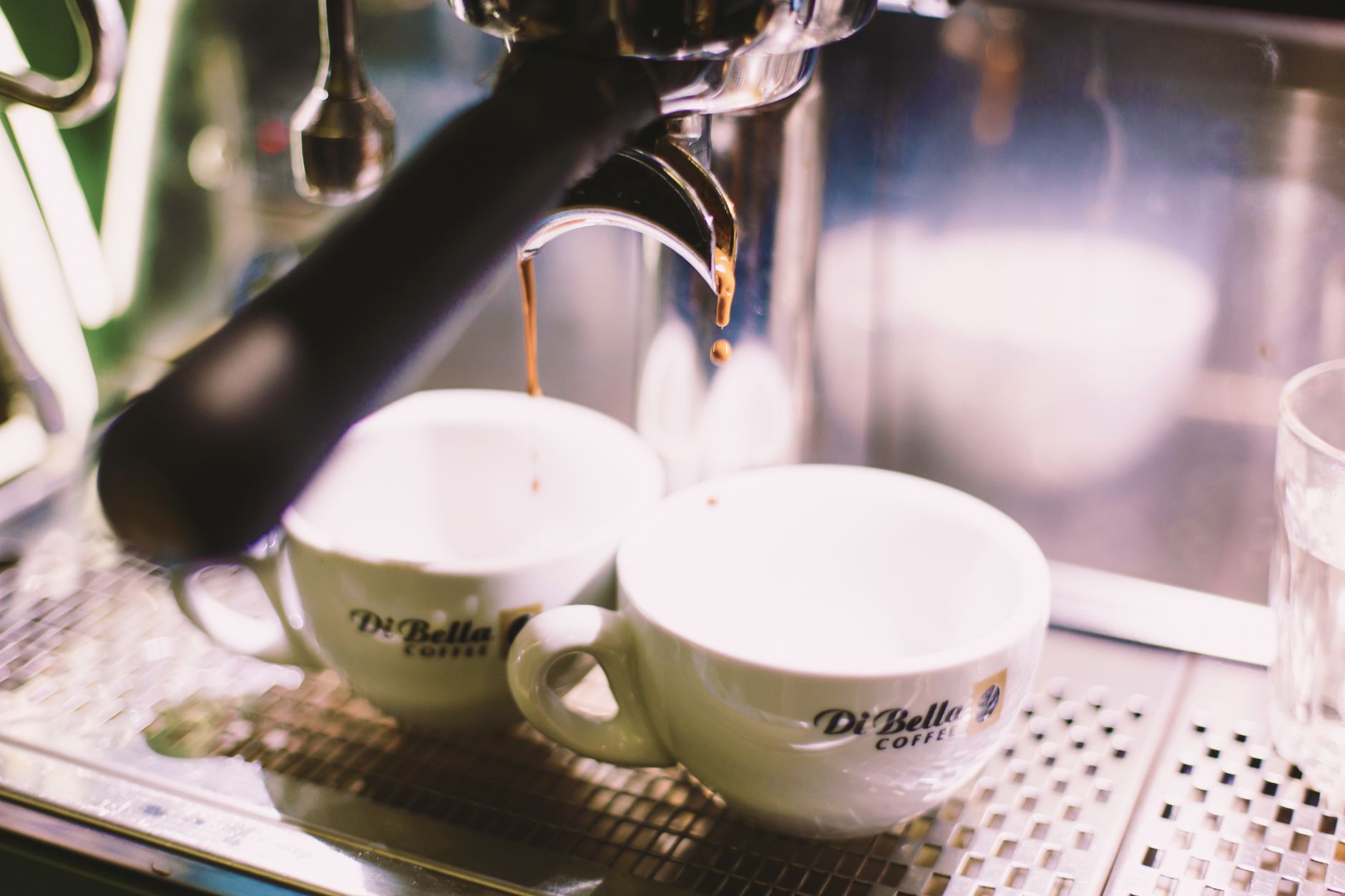

Photo: Di Bella Coffee via Pexels
- Backflush weekly (machines with 3-way solenoid valve) using a blind basket and Cafiza tablet
- Remove and scrub the shower screen monthly — soak in hot water with espresso cleaner
- Replace the group gasket when the portafilter seal feels loose or you see drips
- Check the dispersion plate screws — they loosen over time on high-use machines
→ See Also
- The Complete Guide to Espresso Machines (2026)
- Best Espresso Machine Under $200 (2026)
- Best Espresso Machine Under $500 (2026)
FAQ
What is the group head on an espresso machine? The group head is the brew chamber mounted on the front of the machine where the portafilter locks in. Water from the boiler flows through it, over the coffee puck, and out as espresso. It maintains temperature, distributes water evenly, and seals against the portafilter during extraction.
Why does the group head type matter? Group head design determines thermal stability — how consistently the water temperature holds across multiple shots. Saturated groups (dual boiler) are most stable. E61 thermosyphon groups are excellent for home use. Thermoblock designs in budget machines lose heat between shots, which shows up as inconsistency.
How do I clean an espresso machine group head? Backflush weekly using a blind portafilter basket with a Cafiza or Puly Caff tablet. Monthly, remove the shower screen with a screwdriver and soak it in espresso cleaner solution for 20 minutes, then scrub and rinse. This prevents coffee oil buildup that causes bitter shots and channeling.
What is an E61 group head? The E61 is a group head design that originated with the 1961 Faema E61 machine. It uses a thermosyphon loop to keep the group at brew temperature constantly. It’s the standard on prosumer heat-exchanger machines and is valued for repairability, thermal stability, and a 60+ year parts ecosystem.
How often should I replace a group head gasket? Every 12–18 months with daily use, or sooner if the portafilter feels loose, you need to push harder to lock it, or water seeps from the seal during extraction. Gaskets cost $5–10 and installing one requires no special tools — it’s one of the most cost-effective maintenance tasks on any espresso machine.
